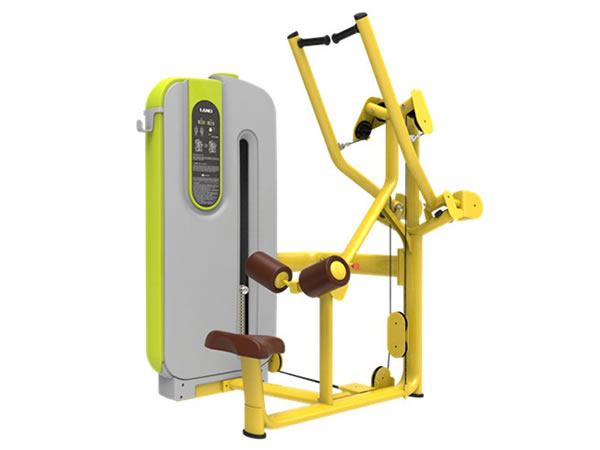

LDGL Series Strength Equipment
Model: LDGL-7012
Name: pulldown
Dimension (mm): 1520*1205*1900
Standard steel weight stack: 100kg
Net weight: 300 kg

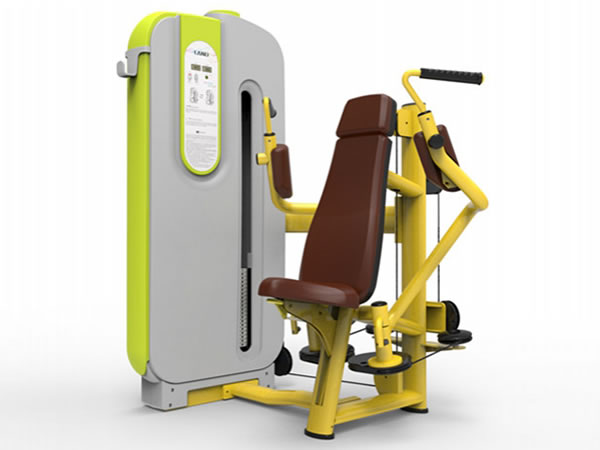

Model: LDGL-7013
Name: pectoral machine
Dimension (mm): 1080*1420*1750
Standard steel weight stack: 100kg
Net weight: 275kg
Model: LDGL-7014
Name: pulley machine
Dimension (mm): 1790*1260*1750
Standard steel weight stack: 120kg
Net weight: 360kg

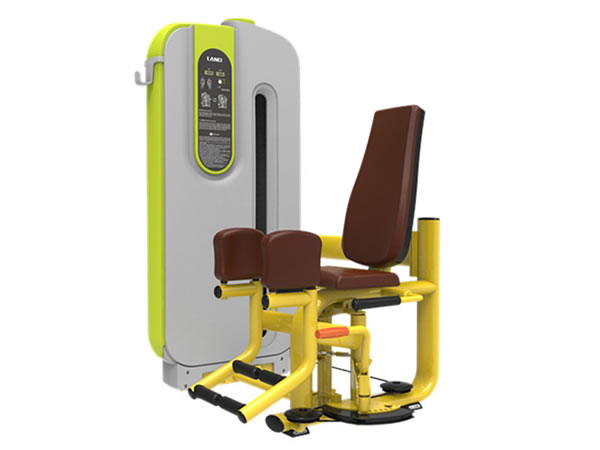

Model: LDGL-7018
Name: abductor
Dimension (mm): 1090*1470*1750
Standard steel weight stack: 70kg
Net weight: 280kg

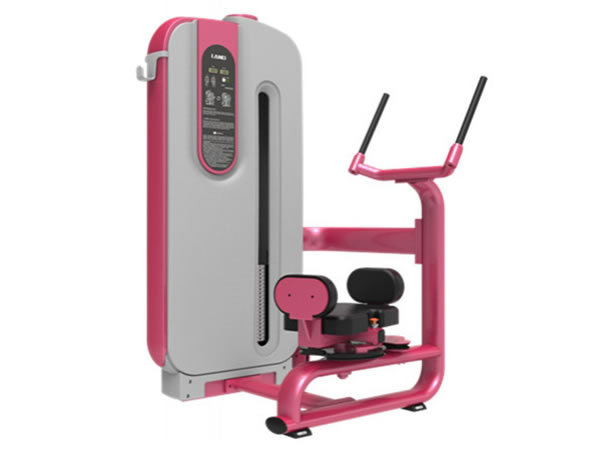

Model: LDGL-7050
Name: rotary torso
Dimension: 1050*1170*1750mm
Standard steel weight stack: 70kg
Net weight: 290kg

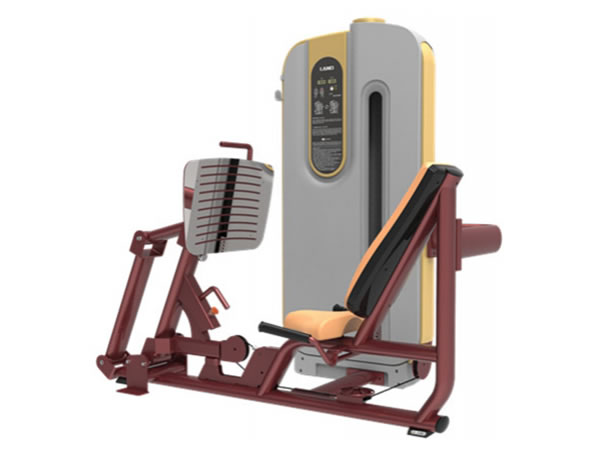

Model: LDGL-7051
Name: leg press
Dimension (mm): 1860*1050*1750
Standard steel weight stack: 145kg
Net weight: 330kg

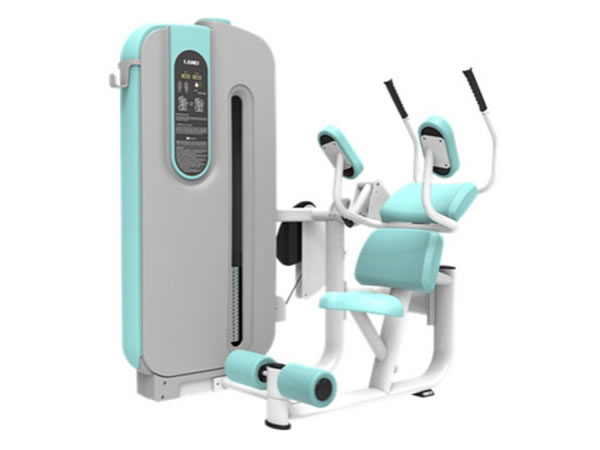

Model: LDGL-7057
Name: abdominal crunch
Dimension (mm): 1480*1180*1750
Standard steel weight stack: 70kg
Net weight: 280kg

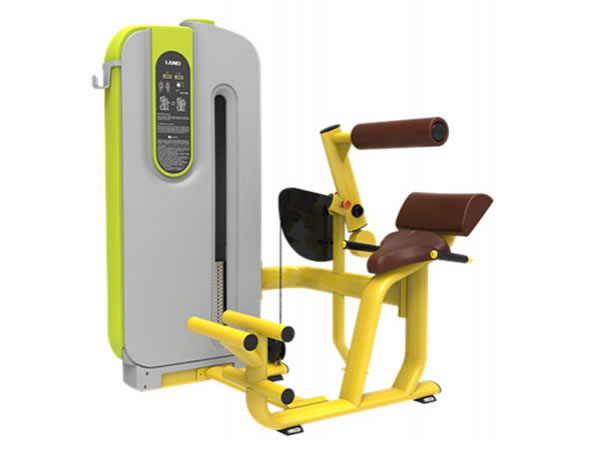

Model: LDGL-7058
Name: low back
Dimension (mm): 1380*1280*1750
Standard steel weight stack: 70kg
Net weight: 280kg

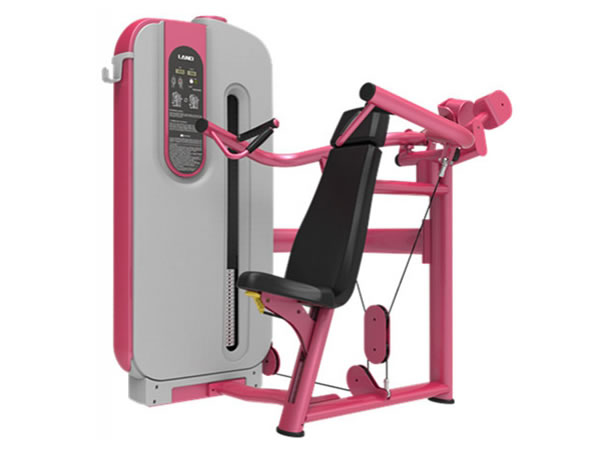

Model: LDGL-7069
Name: shoulder press
Dimension (mm): 1570*1450*1750
Standard steel weight stack: 70kg
Net weight: 280kg

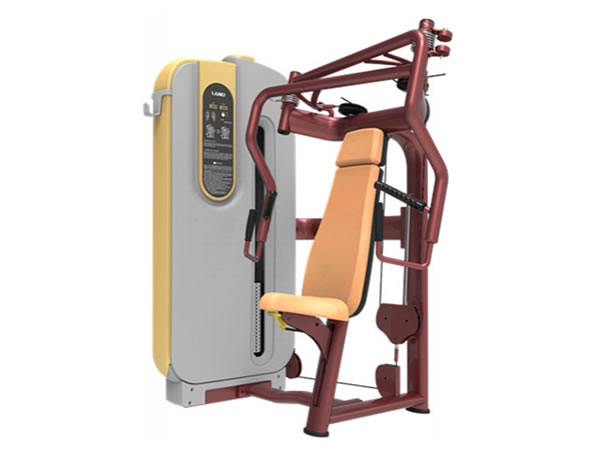

Model: LDGL-7070
Name: chest press
Dimension (mm): 1020*1475*1750
Standard steel weight stack: 100kg
Net weight: 300kg

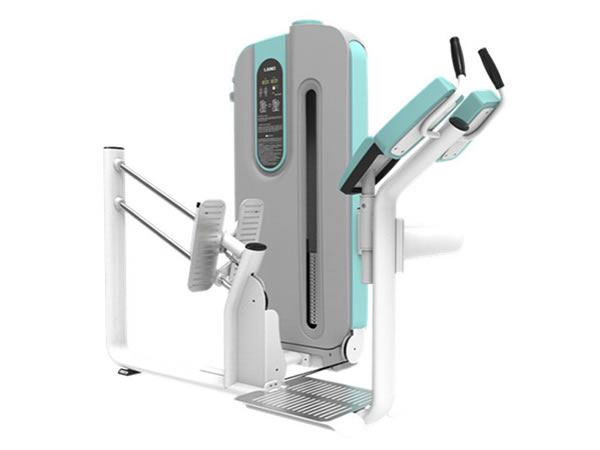

Model: LDGL-7079
Name: glute isolator
Dimension (mm): 2030*1040*1750
Standard steel weight stack: 100kg
Net weight: 290kg

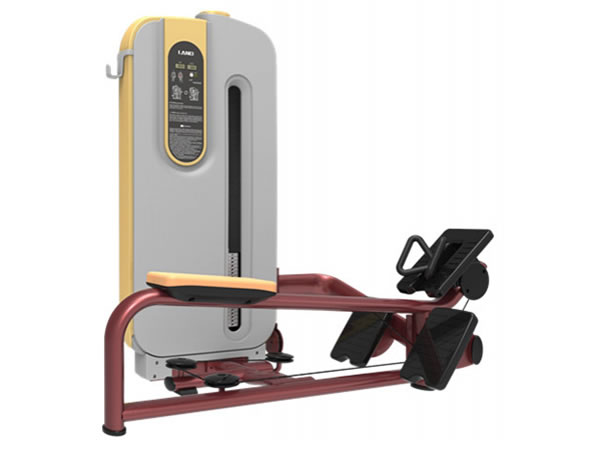

Model: LDGL-7080
Name: low row
Dimension (mm): 1380*1050*1750
Standard steel weight stack: 100kg
Net weight: 280kg
Model: LDGL-7090
Name: leg curl
Dimension (mm): 1380*1230*1750mm
Standard steel weight stack: 100kg
Net weight: 280kg

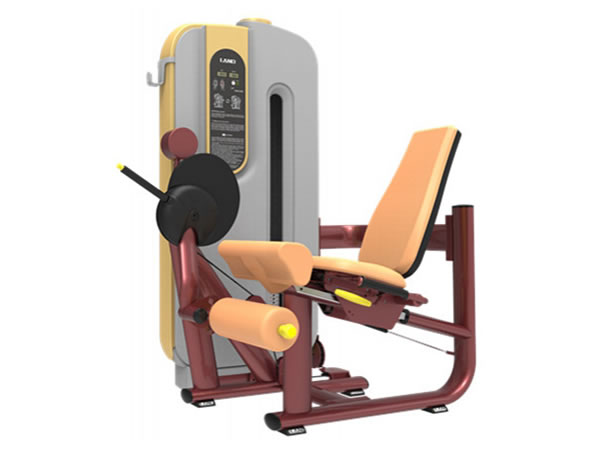

Model: LDGL-7091
Name: leg extension
Dimension (mm): 1380*1230*1750
Standard steel weight stack: 100kg
Net weight: 280kg

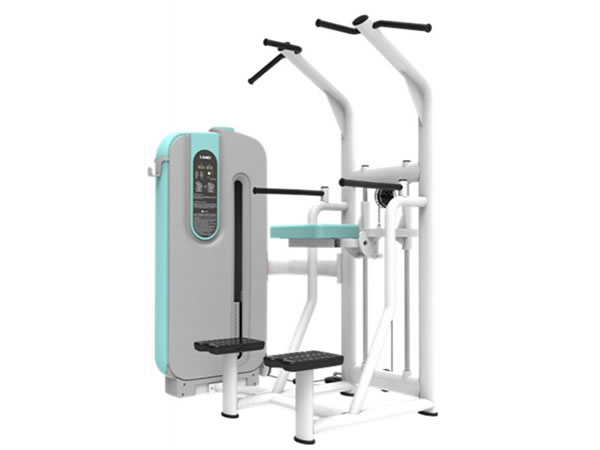

Model: LDGL-7094
Name: assisted dip/chin
Dimension (mm): 1160*1870*2200
Standard steel weight stack: 100kg
Net weight: 380kg

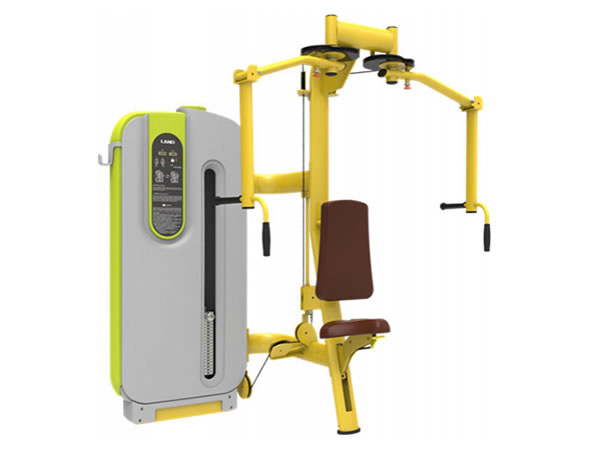

Model: LDGL-7095
Name: seated arm clip chest
Dimension (mm): 1820*1190*2100
Net weight: 350kg

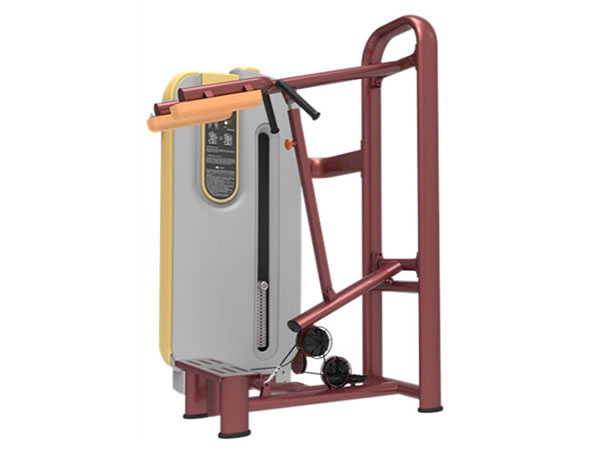

Model: LDGL-7097
Name: standing calf machine
Dimension (mm): 1120*1070*1890
Standard steel weight stack: 100kg
Net weight: 280kg

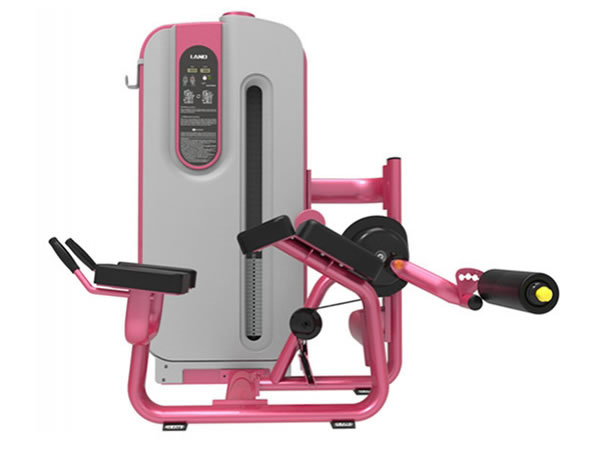

Model: LDGL-7096 prone leg curl
Name: prone leg cur
Dimension (mm): 1612*1135*1653
Standard steel weight stack: 100kg (steel)
Net weight: 220kg
Key Advantages of LDGL Series Strength Equipment
1. Aesthetic appearance and unique design
2. Exquisite design and multiple color selection
3. The reasonable moving track contributes to improve the comfort during training
4. Users are accessible to their training effect at any time with the time displaying and auto counting device
| Cable | inner metal diameter: 4.8mm; outer thickness: 1.2mm |
| Square Tube | 60*120mm: thickness: 3mm; high strength steel tube oval and internally lubricated cables |
| Pulley | Aluminum |
| Welding technique | OTC welding |
| Certificates | CE, ISO9001, RoHS |
| Customization service | available |
| Powder coating | 2 rounds (silver/ black/ dark grey/ white/ red) |
| Painting Color | Optional |
| Applications | gym, exercise club, hotel gym |
| Tire | PU foam with synthetic leather |
| Weight stack | made of steel |
| Material | Q235, 60*120*3 mm |
Details of LDGL series gym strength training equipment

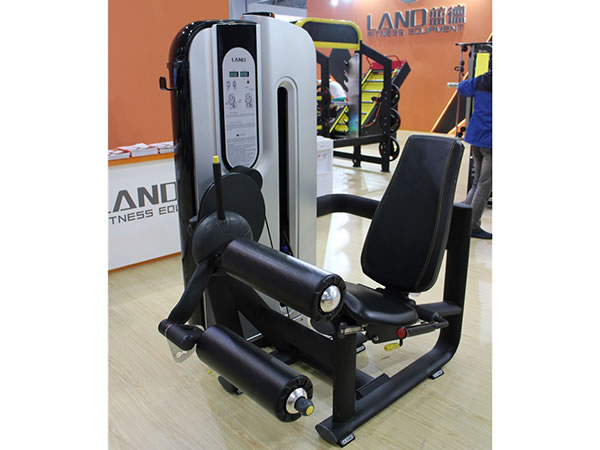

1. The frame
●Streamlined design with 60*120*2.5mm high-strength stainless steel flat oval tube
● To ensure the stability of the equipment, the frame is welded directly on the steel base
● The rubber mat set under the gym exercise equipment can not only protect the floor, but also prevent slipping
● All of the parts are cut precisely
● The welding points have been polished meticulously to make them aesthetic
● To guarantee the stability, we have given a powder coating treatment upon the surface of the strength exercise equipment

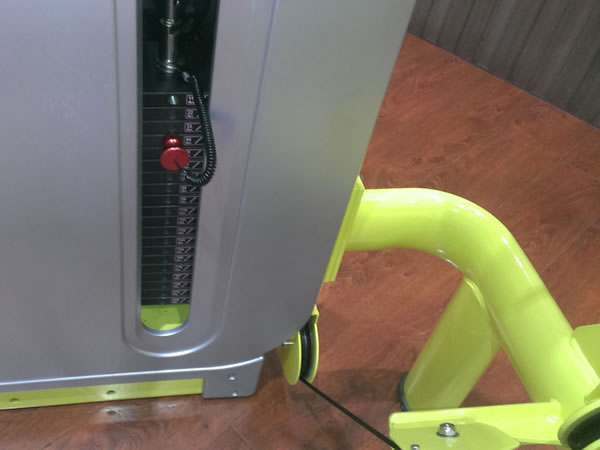

● Light steel weight stack & smooth electroplated slider

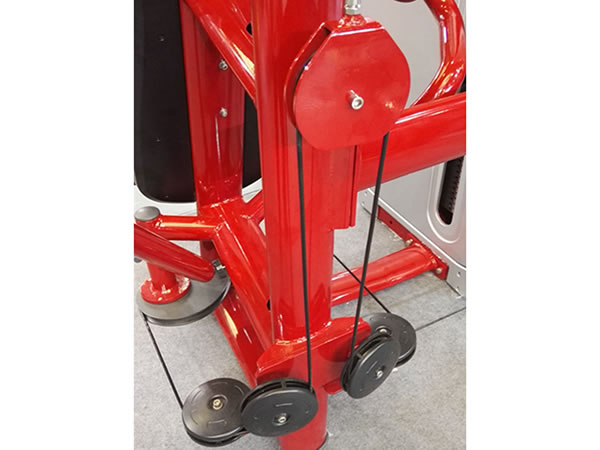

2. Steel cable and pulley
● We adopt 7*19 military steel cable covered by Nylon, with lubrication device equipped
● The pulleys made from glass fiber are available in diameters of both 12cm and 15cm
3. Handles
● The handles made from rubber compound is resistant to sweat and abrasion
● At the end of the handle, we set an Aluminum cap to prevent the rubber from slipping off

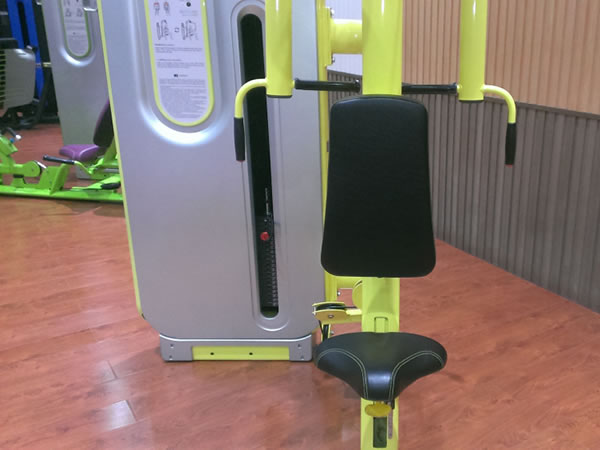

4. Seat and backrest
● The adoption of EVA foam injection molding technique can prevent the cushion from deforming
● The edges are folded and seamed to make the cushion durable
5. Prudent and fashionable design
This series of fitness equipment has assimilated the design concept from Germany. The unique butter structure with torsion spring and the multi-gear leg press foam has made it an ideal for different groups of people

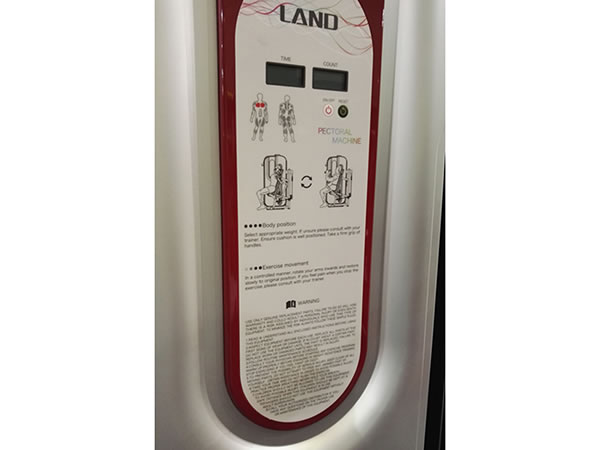

6. Fitness indicator
This fitness indicator is used to instruct people how to use the equipment and work out properly.
7. Weight stack with magnetic pin
8. Rubber mat under the equipment
